The Meepo Esk8 bag is now available! The bag is designed for 38 and 41-inch Meepo boards. There are 2 separate pockets with enough room for safety gear, a GoPro and even a drone.

In addition it's waterproof, has shoulder straps and a hand strap - there are in fact 3 ways to carry it  - the most convenient way is to wear it like a backpack. The bag is equipped with soft foam as the inner layer. Check out the photos to get a better impression of the bag that will protect your Meepo and additional riding gear you want to carry.

What are Shredder Trucks?

Shredder trucks are exclusively designed for hub motor electric longboards by the Meepo team. Their design is based on the Premium Downhill Longboarding trucks.

Prior to the shredder truck, all trucks compatible with hub motors were built by two companies, which created bulk quantity trucks for cheap longboards. Here at Meepo, we decided to look for better options. As the CEO of the Meepo Board company, and an avid longboarder, I’ve always thought about finding better trucks for the Meepo boards, but couldn’t find any.

Upgrading the bushing didn’t quite help, since the design and shape of the existing trucks wasn’t professional. This led me to realize that it is imperative to build our own high-quality trucks for a better riding experience. After many tests and refinements, at the end of August we carried out our first batch of shredder trucks.

The turns and carvings will be much more precise, high speeds of 30-50Km/h will be safer and steadier, and deep carving will be more controlled and fun.

* The big-sized bushing can be compressed more, and therefore provides a stronger rebounce.

* The hanger is crafted to a 3D slot, which enables the bushing cylinder to fit perfectly into the groove when the truck turns.

* The bushing is compressed from additional directions, and will generate more rebounce power to push the truck back to its neutral position.

Riding with the shredder truck, you will feel that the truck is always supporting the deck, especially when carving or taking sharp turns.

Shredder Truck Specifications:

Material: Premium quality A356 aluminum alloy

Bushing: Double tall barrels, 19mm height x 25mm diameter

100A Durameter high rebounce

Since the shredder truck bushings are larger (35-50% larger than standard Cone & Barrel bushings), there is more space for them to compress. This means the 100A bushings will feel like 90A or 95A bushings on other trucks.

Shredder trucks come in 2 types, Shredder wheel Truck and Shredder Hub Truck.
The Shredder Wheel Truck is a none electric skateboard truck that can be used on longboards and compatible with wheels.
The Shredder Hub Truck fits perfectly with Motors on Meepo V1 / V1.5 / V2 / V2Plus, all meepo boards motors at size 90mm.

Specs of Shredder Wheel Truck
Degree: 50°
Hanger width: 200mm
Total width：265mm

Specs of Shredder Hub Truck
Degree: 50°
Motor Shaft size: Height 12mm X Width 12mm X Length 40mm
Width:125 mm
(also called rear truck or back truck)

Bushing
Shape: High Rebunce, Double Tall Barrel
Size: Height 19mm, Outer Diameter 25mm
Durameter: 100A
Color: Orange

Measurements  of 38 inch deck.

Pre-assembled Deck  (grip tape, battery cable, foam pads, bolts+nuts)

41 inch Meepo Board KT deck come with (grip tape, battery cable, foam pads, bolts+nuts)

30 inch Meepo Short deck come with (grip tape, battery cable, foam pads, bolts+nuts)

The Campus2 Deck come as photo, come with Foma tape instead of grip tape.

SANYO 20700B is the battery cell exclusively used in Tesla Model S.

(3000 cycles, use it for years)

Sanyo 20700B is designed to be used at 3000 times recharge cycles, Vesus 300 times the orinary Samsung Cells are.

You can expect to use SANYO Battery pack much much longer than any Samsung battery packs.

This battery is for you. If You

• You like speed and want to run max speed 90% of the time, with little to no voltage sag.

• Need a decent range and live somewhere with LOTS of hills.

• You are a heavy rider (220lbs+)

Note:

• This battery will fit into your old Meepo enclosure. It is a tight fit but it does fit!
• The case comes with charging port build in. charging port is a cord that connects the battery and the adapter.
• Either you buy battery or battery with case, you will get a charging port. So you can charge it without assembling it into Meepo Board.
• Recommended getting an extra adapter/charger for each battery, so that you can charge multiple batteries at the same time.

Battery Specifications

• This is the battery of the Meepo Board and will give you a total of 15.8KMs per charge with less voltage sag!
• This battery is the standard battery of all meepo board V1.5 and V2 and V2P
• This battery is more powerful than the Samsung 22P battery of the original Meepo Board V1.0

Meepo Electric Skateboard extended Batteries:

All Meepo skateboards use Samsung 20R batteries as the standard battery. Why?

Meepo Board motors need at least 24 A continuous current to perform powerfully.

Samsung 20R (4Ah) batteries can provide 44 Amp continuous current!

And LG MH1(6.4Ah) batteries provide only 20 Amp Max.

Meepo has used high discharge rate 10C (Samsung 20R) batteries since October 2017.

Note:

• The case comes with charging port build in. charging port is a cord that connects the battery and the adapter.
• Either you buy battery or battery with case, you will get a charging port. So you can charge it without assembling it into Meepo Board.
• Recommended getting an extra adapter/charger for each battery, so that you can charge multiple batteries at the same time.

Battery Specifications

Meepo Board v1.0 VS Meepo Board v1.5 UPHILL CHALLENGE

Can I bring meepo board on airplane?

Yes. Meepo Board is offering a special battery that is flight compatible.

Replace your original battery with this one before your travel, and you can boarding airplane with your meepo board.

Travel battery specs:

Range: 12 Km / 7.5 Mile

Voltage: 36V (42V when fully charged)

Power: 99Wh

Capacity: 2750 mAh

Whats in the package:

1X Travel Battery

1X Space fulfill foam (for battery assemble to origianl battery case)

1X Adhesive Label (To stick outside of battery case for inspection of  airport checker)

Video to know more about this Travel battery:

• Recommended to get an extra adapter/charger for each battery, so that you can charge all your batteries at the same time.
• Recommended to get an extra adapter when you need to charge at home and in office

We provide EU / US / AU plug according to your shipping address.

Adapter Comparison

42V 1.5A - This charger is for meepo board V1.0 and V1.5 and SANYO MEEPO

41.5V 2A - This charger is for meepo board V1.0 and V1.5 and SANYO MEEPO. And it provide Safe Breaking, if you live up hill you should take this charger to leave a little extra juice in the battery so you break wont give out down hill.

29.4V 1.5A - This charger is only for 7S battery. Its for meepo Campus.

42V 3A  - This Charger is only for 10s2p SANYO battery or SANYO MEEPO BOARD.  Empty SANYO battery will be fully charged within 3 hours.

All adapters have input of 110V-240V AC

The ESC comes with everything pre-assembled.
Items already included in the ESC with Case
1 x Motor Controller
1 x Power Switch
1 x Battery Meter
1 x Aluminum Heat Sink
1 x Motor Controller Enclosure
4 x Controller Mount Screws

This ESC offer Max speed of 25 mph on meepo boards.

You may need to buy a remote for the ESC.
Buy MR30 adaptor to make this ESC compatible with hub motors.
https://meepoboard.com/products/mr30-to-bullet-connector-adaptor

• Safe, This ESC disable the accelaration and only the Brake working whenever the battery(of remote or of board) is critical low.
• This ESC is for dual motor.   Max Current 24Amps. FOC.
• Smart turn on,  no need to bow and press turn on. The ESC turn on automaticly when motor moves.

ESC is completely Redesigned to be a smaller, compact ESC with new Connectors of MR30-F which is more reliable. Max speed is increased to 25 mph. The main electronics improved. Programme software of riding is refined for better riding and brake.  controll

This is the standard wireless remote used to control your Meepo Board v2.0 or custom electric skateboard.

This remote come in random colors,  Either Orange remote + green buttons or Green remote +  Orange buttons.

Remotes ship out of factory Since 15th June are with oil based coating, more comfortable for skin.

This remote includes 4 Modes

• Beginner, 8 mph

• ECO, 16 mph

• Expert, 25 mph

• Expert, 25 mph & Stronger Acceleration

Note: This remote WORKS with all history of Meepo models, v1.0 and the Meepo Campus.

charge time: 15 mins
Use time: one charge, ride 2 weeks, or ride 14 cycles of board battery.
Charge Connector: USB Mini

Here Is How You Can Pair Your Remote To Your ESC

Specifications

Motor with Swappable Urethane
Covering the motor, you will find an aluminum sleeve surfaced with urethane. In the future, we hope to build a larger motor urethane PU that will measure approximately 97/107 mm and compatible with the motor. And, it is possible to make crossover all terrain PU that is compatible with the motor.

Above photo is a pair of motors we tested for more than one month.

Note to history customers.
Before buying extra swappable PU, please have a look at the bolts on your motor.

And pick the PU with the right size.

In May and June 2018, all Swappable motors came with PU with 5 mm big bolts.
Order No.s smaller than #9736 means the motors need big bolts PU.
And from early July, all motors are with 4mm small bolts.



All Black Motors are with improved DURABLE Urethane from 16th. Nov. 2017

Red Motors remain easy to chip/wear out, not suggested.

Specifications

This motor works at 12 AMPS to get 432 Watts at extreme condition.

This Product is for connecting the Meepo Board ESC V2 to hub motors.

Technical name: MR30 Female connector TRANSFER TO Bullet-Connectors-Covers.
It comes with one pair, for one ESC and 2 hub motors.

Tipically, if you have meepo board of V1 or V1.5 and want to upgrade the ESC, you can buy an ESC and this MR30 adaptor.

This is a Bash Guard to protect the your Deck from damage when hit on a curb/wall. Fits best on 38" size deck,  you will get 2x Bash Guards.

Tailored to be best size for Meepo Boards 38" new deck.

Do you need to protect your battery or ESC? Enclosures are made just for that! You can assemble any enclosure on the bottom of your deck.

• Battery Case comes with a charging port pre-assembled.
• ESC Case comes with power indicator lights and switch pre-assembled.

These are adhesive foam pads that can be used to deck swaps. Every Meepo Board includes 1 pair in case you want to do a deck swap in the future.

Remove the yellow paper to stick the pads on your new deck to apply.

Dimensions

This is a wall mount that can hang and hold your Meepo Board! This was a Guitar hanger that I found on market, and it works just perfect for electric skateboards.

This is a silicone sealing tool which is used to seal holes/gaps on your electric skateboard . We use this on ALL Meepo boards to make sure its a secure fit and and better sealing.

The gun comes with 2 plastic bars includes already

The gun gets hot, and the plastic bar turns into liquid, and you drop it on the gaps to seal the hole.

Then the plastic will harden and stay in the gap, thus the gaps are sealed and protected.

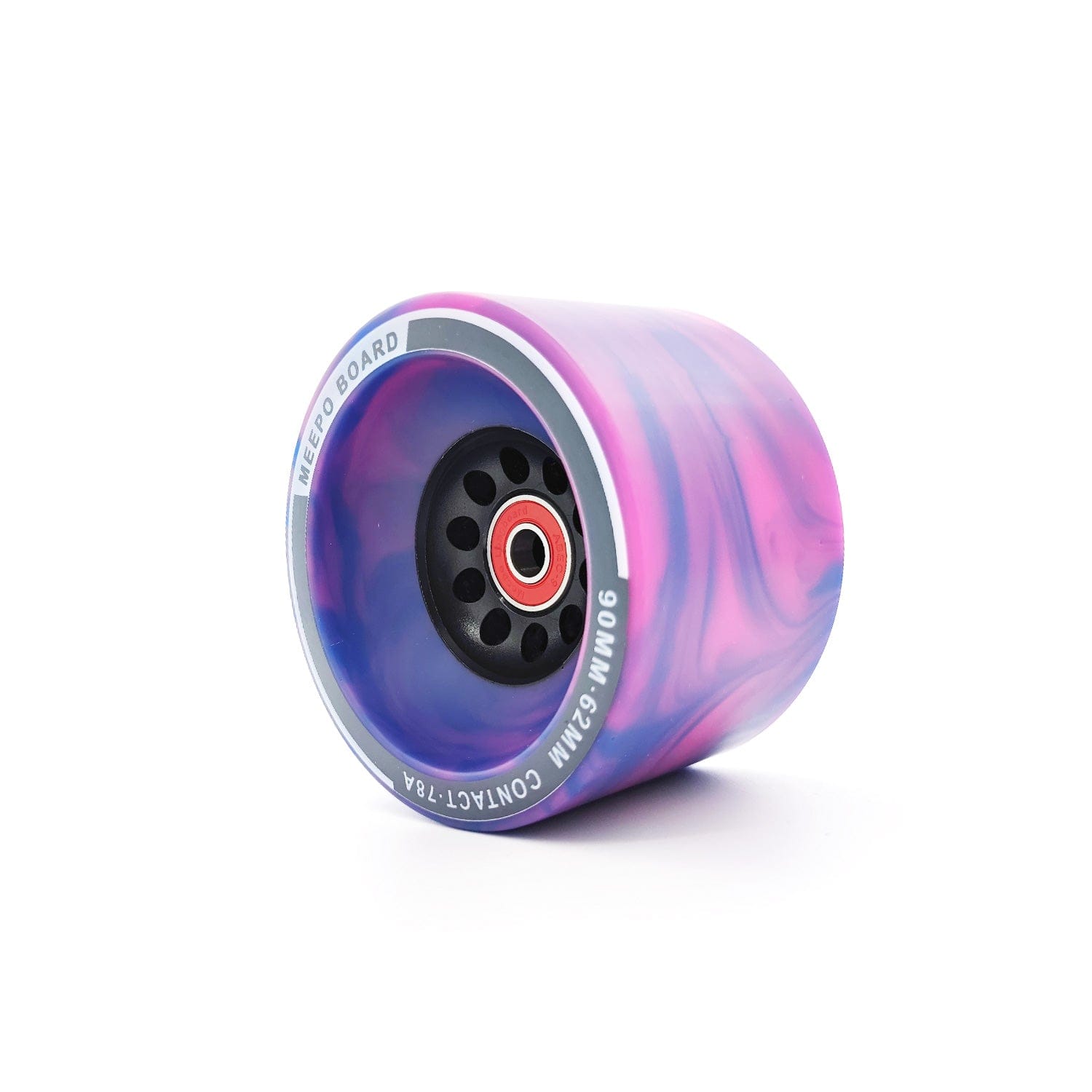

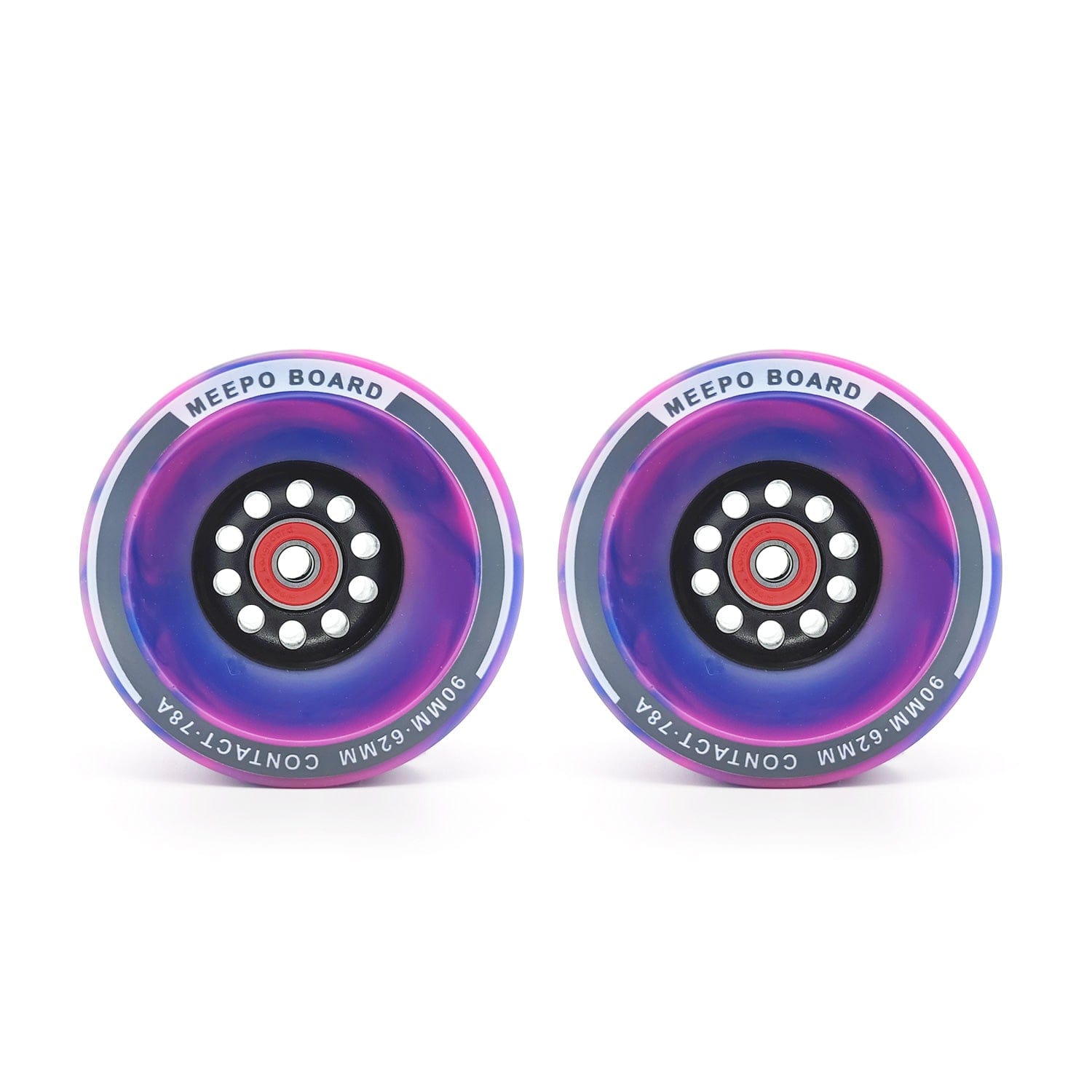

These are two front wheels with no motor inside. Its compatible with any skateboard as well as electric skateboards.

4 Bearings for 2 wheels are not included.

Measurements

These are skateboard bearings that are used for your front wheels. This product is sold by the unit, each unit being...

4x bearings

2x spacers

For 2 front wheels, you need 1 unit = 4 bearings and 2 spacers

⠀

Manufacture of bearing is called C&U , of the biggest bearing manufacture in China.
